USER MANUAL
TUMBLE DRYER
Life is complicated today. Let's make at least laundry care simple! Your new dryer
uses innovative technology and the latest achievements in laundry care to help you
simplify your daily household chores.
The technology offers the gentlest care for any garment, with minimum creasing. Moreover,
your new dryer is also friendly to the environment as it uses power in the most economical
way possible.
This dryer is intended solely for household use. Please do not use it to dry clothes that are not suitable for machine drying.
The following symbols are used throughout the manual and they have the following meanings:
Information, advice, tip, or recommendation
Warning – general danger
Warning – danger of electric shock
Warning – danger of hot surface
Warning – danger of fire
It is important that you carefully read the instructions.
For more detailed instructions & tips, please check: http://www.gorenje.com
SAFETY PRECAUTIONS
Carefully read the instructions for use before using the dryer.
Please, do not use the dryer without reading and understanding these instructions for use first.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
These instructions for use of a dryer are supplied with different types or models of dryers. Therefore, they may include descriptions of settings or equipment that are not available in your dryer.
The maximum mass of dry textile material in kilograms to be used in the appliance.
Failure to observe the instructions for use or inappropriate use of the dryer may result in damage to the laundry or the appliance, or injury to the user. Keep the instruction manual handy, near the dryer.
Instructions for use are available on our website at www.gorenje.com.
Your dryer is intended solely for household use. If the dryer is used for professional, for-profit purpose or purpose exceeding normal use in a household, or if the dryer is used by a person who is not a consumer, the warranty period shall be equal to the shortest warranty period required by relevant legislation.
Follow the instructions for correct installation of the Gorenje dryer and connection to the power mains (see chapter »INSTALLATION AND CONNECTION«).
All and any repairs or maintenance tasks on the dryer should only be done by trained experts. Unprofessional repair may result in an accident or major malfunction.
To avoid danger, a damaged power cord may only be replaced by the manufacturer, a service technician, or an authorized person.
After installation, the dryer should stand still for two hours before it is connected to the power mains.
Do not connect the dryer to power mains using an external switching device such as a programme timer, or connect it to power mains that is regularly switched on and off by the power supply provider.
The dryer shall not be connected to the power mains using an extension cord.
Do not connect the tumble dryer to an electrical outlet intended for an electric shaver or a hair dryer.
In case of a defect, only use approved spare parts by authorized manufacturers.
In case of incorrect dryer connection, incorrect use, or servicing by an unauthorized person, the user shall bear the cost of any damage as such damage shall not be covered by warranty.
Always use the hoses supplied with the dryer.
Install the dryer in a room with adequate ventilation and a temperature between 15°C and 25°C.
At least two persons are required to install the tumble dryer on top of a washing machine.
Place the dryer on a level and stable solid (concrete) base.
The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.
Never block the air exhaust (evacuation opening).
For appliances with ventilation openings in the base, a carpet must not obstruct the openings.
The air in the room where the dryer is installed may not contain dust particles.
Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.
The fibre must not to be allowed to accumulate around the tumble dryer.
In the appliance enclosure or in the built-in structure, keep ventilation openings clear of obstruction.
The appliance may not be in contact with a wall or adjacent furniture.
After installation, let the dryer rest still for 24 hours before using it. If the dryer has to be laid down on one of the sides during transport or servicing, place it with its left side, viewing from the appliance front, downwards.
Do not dry unwashed items in the tumble dryer.
Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
Remove all objects from pockets such as lighters and matches.
If the condensate tube is blocked or clogged, then tumble dryer operation is stopped (see chapter »PAUSING AND CHANGING THE PROGRAMME/Full condensate tank«).
Before moving the dryer or before storing it in a non-heated room during the winter, the condensate tank has to be emptied.
That the lint filter has to be cleaned frequently, if applicable.
Clean the dryer filters after each drying cycle. If you have removed the filters, replace them before the next drying cycle.
Do not use any solvents or cleaning agents that could damage the dryer (please observe the recommendations and warnings provided by the manufacturers of the cleaning agents).
Never add chemicals or fragrances into the condensate tank (see chapter »DESCRIPTION OF THE DRYER and EMPTYING THE CONDENSATE TANK«).
After the drying process, unplug the dryer power cord from the power outlet.
The dryer uses a heat pump system to heat the air.
The system consists of a compressor and a heat exchanger. When the dryer is started, compressor operation (the sound of flowing liquid) or flow of refrigerant may be louder as long as the compressor operates. This is not a sign of malfunction and it will not affect useful life of the dryer. In time and with use of the dryer this noise will become quieter.
The warranty does not cover consumables, minor deviations in colour, increased noise that results from appliance age and which does not affect the functionality of the dryer, and aesthetic defects on components, which do not affect the dryer's functionality and safety.
Child safety
Child safety
Children should be supervised to ensure that they do not play with the appliance.
Children of less than 3 years should be kept away unless continuously supervised.
Prevent your children and pets from entering the dryer drum.
Before closing the dryer door and running the programme, make sure there is nothing except laundry in the drum (e.g. if a child climbed into the dryer drum and closed the door from the inside).
Activate the Child lock. See chapter »STEP 4: SETTING THE EXTRA FUNCTIONS/Child lock«.
The dryer is made in compliance with all relevant safety standards.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Danger of hot surface
At higher drying temperatures, the door glass will heat up. Be careful to avoid burns. Make sure children do not play near the door glass.
The back of the dryer may get very hot during operation. Wait for the dryer to cool down completely before touching its back side.
If you open the dryer door during the drying process, the clothes may be very hot and there is a risk of burning.
Never stop the drying process before it is completed; if you do interrupt the cycle for any reason, be careful when removing the laundry from the drum as it is very hot. Quickly remove the laundry from the drum and spread it to allow it to cool down as quickly as possible.
Safety
Only use the dryer to dry laundry that was washed with water. Do not dry any laundry that was washed or cleaned with flammable cleaners or substances (such as gasoline, trichloroethylene etc.) as this may result in an explosion.
The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
The dryer is protected with an automatic switch-off system in case of overheating. This system will switch off the dryer if the temperature is too high.
If the net filter is clogged, the overheating automatic switch-off system may be activated. Clean the filter, wait for the dryer to cool down, and try running it again. If the dryer still fails to start, call a service technician.
Do not damage the refrigerant circuit.
The refrigerant R290 in this appliance is environmentally friendly yet combustible and may ignite if it comes into contact with open flames or ignition sources. Keep naked flames and ignition sources away from the appliance.
SAFETY PRECAUTIONS
Carefully read the instructions for use before using the dryer.
This dryer is intended solely for household use. Please do not use it to dry clothes that are not suitable for machine drying.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
The maximum mass of dry textile material in kilograms to be used in the appliance.
To avoid danger, a damaged power cord may only be replaced by the manufacturer, a service technician, or an authorized person.
Do not connect the dryer to power mains using an external switching device such as a programme timer, or connect it to power mains that is regularly switched on and off by the power supply provider.
The dryer shall not be connected to the power mains using an extension cord.
Do not connect the tumble dryer to an electrical outlet intended for an electric shaver or a hair dryer.
The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.
The air in the room where the dryer is installed may not contain dust particles.
Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.
Install the dryer in a room with adequate ventilation and a temperature between 15°C and 25°C.
Do not dry unwashed items in the tumble dryer.
Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
Remove all objects from pockets such as lighters and matches.
Never block the air exhaust (evacuation opening).
For appliances with ventilation openings in the base, a carpet must not obstruct the openings.
The fibre must not to be allowed to accumulate around the tumble dryer.
Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
That the lint filter has to be cleaned frequently, if applicable.
Clean the dryer filters after each drying cycle. If you have removed the filters, replace them before the next drying cycle.
Do not use any solvents or cleaning agents that could damage the dryer (please observe the recommendations and warnings provided by the manufacturers of the cleaning agents).
Never add chemicals or fragrances into the condensate tank (see chapter »DESCRIPTION OF THE DRYER and EMPTYING THE CONDENSATE TANK«).
After the drying process, unplug the dryer power cord from the power outlet.
The warranty does not cover consumables, minor deviations in colour, increased noise that results from appliance age and which does not affect the functionality of the dryer, and aesthetic defects on components, which do not affect the dryer's functionality and safety.
Child safety
Warning – general danger
Warning – general danger
Children of less than 3 years should be kept away unless continuously supervised.
Children should be supervised to ensure that they do not play with the appliance.
The dryer is made in compliance with all relevant safety standards.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Danger of hot surface
Warning – danger of hot surface
At higher drying temperatures, the door glass will heat up. Be careful to avoid burns. Make sure children do not play near the door glass.
The back of the dryer may get very hot during operation. Wait for the dryer to cool down completely before touching its back side.
If you open the dryer door during the drying process, the clothes may be very hot and there is a risk of burning.
Never stop the drying process before it is completed; if you do interrupt the cycle for any reason, be careful when removing the laundry from the drum as it is very hot. Quickly remove the laundry from the drum and spread it to allow it to cool down as quickly as possible.
Safety
Only use the dryer to dry laundry that was washed with water. Do not dry any laundry that was washed or cleaned with flammable cleaners or substances (such as gasoline, trichloroethylene etc.) as this may result in an explosion.
The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
The dryer is protected with an automatic switch-off system in case of overheating. This system will switch off the dryer if the temperature is too high.
If the net filter is clogged, the overheating automatic switch-off system may be activated. Clean the filter, wait for the dryer to cool down, and try running it again. If the dryer still fails to start, call a service technician.
Do not damage the refrigerant circuit.
The refrigerant R290 in this appliance is environmentally friendly yet combustible and may ignite if it comes into contact with open flames or ignition sources. Keep naked flames and ignition sources away from the appliance.
DESCRIPTION OF THE DRYER
FRONT
-
Condensate tank
-
On/off button
-
Program selector knob
-
Start/pause button
-
Control unit
-
Door
-
Lint filter
-
Air vent
-
Heat pump filter
-
Rating plate
BACK
-
Power cord
-
Condensate discharge hose
-
Adjustable feet
Technical data
(depending on the model)
Rating plate with basic information about the dryer is located on the inner side of the dryer door (see chapter »DESCRIPTION OF THE DRYER«).
|
|
600 mm |
|
Height |
850 mm |
|
Dryer depth (a) |
625 mm |
|
Depth with door closed |
653 mm |
|
Depth with door open (b) |
1134 mm |
|
Weight |
XX/YY kg (depending on the model) |
|
Rated voltage |
See rating plate |
|
Fuse |
See rating plate |
|
Nominal power |
See rating plate |
|
Quantity of refrigerant |
See rating plate |
|
Type of refrigerant |
R290 |
|
Maximum load |
See rating plate |
Rating plate
Link to the EU EPREL database
From 1 March 2021, information on energy labelling and ecodesign requirements is available in the EU EPREL product database.
The QR code on the energy label supplied with the appliance contains a web link through
which you can find your registered appliance in the EU EPREL database.
Information regarding the performance of the product can also be found in the EU EPREL
database, which is accessible via the link https://eprel.ec.europa.eu, where you have to enter the model and product number; both are indicated on the
rating plate on the appliance. On the website www.theenergylabel.eu you can find more detailed information about the energy label.
Keep the energy label in case it is needed in the future, together with the user manual and other documents supplied with this appliance.
DESCRIPTION OF THE DRYER
FRONT
-
Condensate tank
-
On/off button
-
Program selector knob
-
Start/pause button
-
Control unit
-
Door
-
Lint filter
-
Air vent
-
Heat pump filter
-
Rating plate
BACK
-
Power cord
-
Condensate discharge hose
-
Adjustable feet

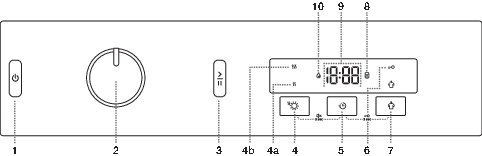

Control unit
|
1 |
ON/OFF BUTTON Switching the dryer on and off. |
|
2 |
PROGRAMME SELECTOR KNOB |
|
3 |
START/PAUSE BUTTON Use this button to start or stop the programme. Upon start-up or during pause, the button light will flash; when the programme is started and in progress, it will be lit continuously. |
|
4 |
EXTRA DRY The symbol is lit when the function is selected. Extra functions 4a |
|
5 |
DELAY END Option to set the time when the drying will end. |
|
4+5 |
Sound ON/OFF Press the positions 4+5 and hold them for 3 seconds. |
|
6 |
CHILD LOCK symbol |
|
5+7 |
Child lock ON/OFF Press the positions 5+7 and hold them for 3 seconds. |
|
7 |
ANTI CREASE An indicator light will light up next to the selected function. |
|
8 |
Lighting of the symbol CLEAN THE FILTER |
|
9 |
The following is displayed on the DISPLAY UNIT: • Available functions; • Time remaining to programme completion; • Information for the user. |
|
10 |
Lighting of the symbol EMPTY THE CONDENSATE TANK |
INSTALLATION AND CONNECTION
Remove all packaging. When removing the packaging, make sure not to damage the dryer with a sharp object.
Selecting the room
The dryer may not be in contact with a wall or adjacent furniture. For optimum dryer operation, we recommend observing the clearance from the walls as indicated in the figure. In case of failure to heed the required minimum clearance, the dryer may overheat.
Vents on the back wall and the air exhaust opening on the front side of the dryer should never be obstructed.
The room in which you will install the dryer should be sufficiently ventilated, with a temperature between 15°C and 25°C. Dryer operation at a lower environment temperature may result in condensate accumulation in the dryer interior. Do not place the dryer into a place where there is danger of freezing. Frozen water in the condensate tank and pump may damage the dryer.
The dryer emits heat. Therefore, do not place it in a very small room, as the drying process may take longer due to limited amount of available air.
Lighting in the room should be sufficient to allow reading the information on the display unit on the control panel.
Dryer placement
If you also have a Gorenje dryer of corresponding (same) dimensions, it can be placed on top of the Gorenje washing machine; in this case, vacuum feet must be used and wall fixing bracket. Alternatively, the dryer can be placed next to the washing machine (figures 1 and 3).
If your Gorenje washing machine is smaller (minimum depth 545 mm), than your Gorenje dryer, then the dryer support has to be purchased extra (figure 2). The supplied vacuum feet must be used; they are designed to prevent the dryer from slipping.
Additional equipment: tumble dryer bracket (a), vacuum feet (b) (if not supplied) and wall fixing bracket (c), can be purchased at the service centre.
The surface on which the appliance is placed should be clean and level.
Gorenje washing machine onto which you intend to place the Gorenje dryer should hold the weight of the Gorenje dryer (see chapter »WASHING MACHINE DESCRIPTION/Technical information«).
|
|
||
|
1 |
2 |
3 |
At least two persons are required to install the tumble dryer on top of a washing machine.
Opening the dryer door (top view)
|
|
See chapter »DESCRIPTION OF THE DRYER/Technical information«. a = 625 mm b = 1134 mm |
The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.
For appliances with ventilation openings in the base, a carpet must not obstruct the openings.
After installation, wait for 24 hours without moving the appliance before using it for the first time. If the dryer has to be laid down on one of the sides during transport or servicing, place it with its left side, viewing from the appliance front, downwards.
Adjusting the dryer feet
Level the dryer in longitudinal and traverse direction by rotating the adjustable feet which allow levelling by +/- 1 cm. Use a spirit level and spanner No. 22.
Floor on which the dryer is placed must have a concrete base. It should be clean and dry; otherwise, the dryer may slide. Also clean the adjustable feet.
The dryer must stand level and stable on a solid base.
Incorrect levelling of the dryer with the adjustable legs may cause vibration, appliance sliding across the room, and loud operation. Incorrect levelling of the dryer shall not be subject to warranty.
Sometimes, unusual or louder noise may appear during appliance operation; these are mostly the result of improper installation.
Condense water
The moisture from the laundry is extracted in the condenser unit and accumulated in the condensate tank.
During the drying process, an indicator light (symbol
), is lit on the display unit) warns when the condensate tank is full and needs to
be emptied.
To avoid emptying the condensate tank, run the condensate discharge hose located at the back of the appliance directly into a drain.
|
|
|
|
1Release the hose from the holder on the back wall of the dryer (left hand side, below the top cover). |
|
|
2Run the hose into a drain at a height of no more than 80 cm from the floor. |
If you decide to run the condensate drain hose into a drain, make sure the hose is securely fastened. This will prevent any water spillage which could result in unexpected damage.
Always use the hoses supplied with the dryer.
Connecting to the power mains
After installation, the dryer should stand still for two hours before it is connected to the power mains; this allows the dryer to stabilize.
Connect the dryer to a grounded power outlet. After installation, the wall outlet should be freely accessible. The outlet should be fitted with an earth contact (in compliance with the relevant regulations).
Information on your dryer is indicated on the rating plate (see chapter »DESCRIPTION OF THE DRYER/Technical information«).
We recommend using over-voltage protection to protect the appliance in case of a lightning strike.
The dryer shall not be connected to the power mains using an extension cord.
Do not connect the tumble dryer to an electrical outlet intended for an electric shaver or a hair dryer.
Any repair and maintenance pertaining to safety or performance should be done by trained experts.
A damaged power cord may only be replaced by a person authorized by the manufacturer.
Moving and transport after installation
After every drying cycle, a small amount of condensed water will remain in the dryer. Switch on the dryer and choose one of the programmes, then let the appliance operate for approximately half a minute. This will pump out the remaining water and prevent damage to the dryer during transport.
If the dryer cannot be transported in the upright position, tilt it to the left side.
After transport, the dryer should be left to stand still for at least two hours before it is connected to the power mains. The appliance should be installed and connected by a trained technician.
If the appliance was not transported in compliance with the instructions, the dryer should be left to stand still at least 24 hours before it is reconnected to the power mains.
Failure to do so may result in a heat pump failure which shall not be covered by the warranty.
Be careful not to damage the cooling system (see chapter »INSTALLATION AND CONNECTION/Dryer placement«).
Carefully read the instructions for use before connecting the dryer. Repair or any warranty claim resulting from incorrect connection or use of the dryer shall not be covered by the warranty.
The belt may only be replaced by a service technician authorized by the manufacturer, who can supply the original spare part with the code 907722 BELT POLY-V 7PH 1971 HUTCHINSON; 883647 BELT POLY-V 7PHE 1942 HUTCHINSON (depending on the model).
INSTALLATION AND CONNECTION
Dryer placement
Opening the dryer door (top view)
|
|
a = 625 mm b = 1134 mm |
After installation, wait for 24 hours without moving the appliance before using it for the first time. If the dryer has to be laid down on one of the sides during transport or servicing, place it with its left side, viewing from the appliance front, downwards.
Adjusting the dryer feet
Level the dryer in longitudinal and traverse direction by rotating the adjustable feet which allow levelling by +/- 1 cm. Use a spirit level and spanner No. 22.
Information, advice, tip, or recommendation
Floor on which the dryer is placed must have a concrete base. It should be clean and dry; otherwise, the dryer may slide. Also clean the adjustable feet.
The dryer must stand level and stable on a solid base.
Incorrect levelling of the dryer with the adjustable legs may cause vibration, appliance sliding across the room, and loud operation. Incorrect levelling of the dryer shall not be subject to warranty.
Sometimes, unusual or louder noise may appear during appliance operation; these are mostly the result of improper installation.
Condense water
During the drying process, an indicator light (symbol ), is lit on the display unit) warns when the condensate tank is full and needs to
be emptied.
To avoid emptying the condensate tank, run the condensate discharge hose located at the back of the appliance directly into a drain.
Connecting to the power mains
After installation, the dryer should stand still for two hours before it is connected to the power mains; this allows the dryer to stabilize.
We recommend using over-voltage protection to protect the appliance in case of a lightning strike.
Connect the dryer to a grounded power outlet. After installation, the wall outlet should be freely accessible. The outlet should be fitted with an earth contact (in compliance with the relevant regulations).
BEFORE USING THE APPLIANCE FOR THE FIRST TIME
Make sure the dryer is disconnected from the power mains; then, open the door by pulling the left side of the door towards you (figures 1 and 2).
Before using the dryer for the first time, clean the dryer drum using a soft damp cotton cloth and water (figure 3).
|
|
|
|
1 |
2 |
|
|
|
|
3 |
Do not use any solvents or cleaning agents that could damage the dryer (please observe the recommendations and warnings provided by the manufacturers of the cleaning agents).
BEFORE USING THE APPLIANCE FOR THE FIRST TIME
DRYING PROCESS, STEP BY STEP (1 - 6)
Step 1: Heed the labels on the laundry
|
Normal wash; Sensitive laundry |
|||||||||||
|
|
Max. washing temp. 95°C |
|
Max. washing temp. 40°C |
|
Hand wash only |
||||||
|
|
Max. washing temp. 60°C |
|
Max. washing temp. 30°C |
|
Do not wash |
||||||
|
Bleaching |
|||||||||||
|
|
Bleaching in cool water |
|
Bleaching not allowed |
||||||||
|
Dry cleaning |
|||||||||||
|
|
Dry cleaning with all agents |
|
Petroleum solvent R11, R113 |
||||||||
|
|
Dry cleaning in kerosene, pure alcohol, and R113 |
|
Dry cleaning not allowed |
||||||||
|
Ironing |
|||||||||||
|
|
Hot ironing, max. 200°C |
|
Hot ironing, max. 110°C |
||||||||
|
|
Hot ironing, max. 150°C |
|
Ironing not allowed |
||||||||
|
Drying |
|||||||||||
|
|
Dry flat (place on a flat surface) |
|
High temperature |
||||||||
|
|
Drip dry |
|
Low temperature |
||||||||
|
|
Line dry |
|
Tumble drying not allowed |
||||||||
Step 2: Preparing for the laundry drying process
-
Sort the laundry by type and thickness of the fabric (see PROGRAMME TABLE).
-
Close the buttons and zips, tie any ribbons, and turn the pockets inside out.
-
Place very sensitive clothes in a special-purpose laundry bag.
(The special-purpose laundry bag is available as an optional accessory.)
Drying laundry made of particularly delicate fabrics that may be deformed is not recommended. The following types of laundry may not be dried in the dryer as this may cause your garments to deform:
-
leather garments and other leather products,
-
garments that are waxed or treated in any other way,
-
garments with major wooden, plastic, or metal parts;
-
garments with spangles;
-
garments with metal parts subject to rusting.
Switching on the dryer
Connect the dryer to the power mains by plugging in the power cord.
Press the (1) ON/OFF button to switch on the dryer (figure 1).
With some models, the dryer drum is lit as well (figure 2).
(The light in the dryer drum is not suitable for any other use.)
The light in the dryer drum may only be replaced by the manufacturer, a service technician or an authorized person.
|
|
|
|
1 |
2 |
Loading the dryer
Open the dryer door by pulling the left side of the door towards you (figure 1).
Insert the laundry into the drum (after making sure the drum is empty) (figure 2).
Close the dryer door (figure 3).
|
|
|
|
1 |
2 |
|
|
|
|
3 |
Do not insert laundry into the dryer if it has not been wrung or spun (recommended minimum spinning cycle: 800 rpm).
Do not overload the drum! See PROGRAMME TABLE and observe your nominal load as indicated on the rating plate.
If the dryer drum is overloaded, the laundry will be more wrinkled and perhaps unevenly dried.
When drying larger items (bedding, towels, tablecloths etc.), loosen them and then insert them into the dryer drum.
Step 3: Choosing the drying programme
Choose the programme by rotating the programme selector knob (2) to the left or to the right (depending on the type of laundry and the desired level of dryness). See PROGRAMME TABLE.
The programme selector knob (2) will not rotate automatically during operation.
Program chart
|
Program Dryness levels |
Max. load |
Programme description |
|||||
|---|---|---|---|---|---|---|---|
|
|
Cotton (Cotton) Storage (Cupboard dry) |
7 kg |
Use this programme for thicker non-sensitive cotton laundry. After drying, it will be dry and ready to be stored in the cupboard. |
||||
|
|
Cotton Eco* (Cotton Eco) |
7 kg |
The Eco programme is suitable to dry wet cotton laundry, and is the most efficient programme in terms of energy consumption for drying wet cotton laundry. |
||||
|
|
Cotton (Cotton) Iron (Moist for ironing) |
7 kg |
Use this program for non-sensitive cotton laundry. After drying, it will be ready for ironing. |
||||
|
|
Mix (Mixed laundry) |
3,5 kg |
The program is used for drying cotton and synthetic laundry at the same time. |
||||
|
|
Synthetics (Synthetics) |
3,5 kg |
The program is used for drying synthetic and blended textiles. |
||||
|
|
Wool (Wool) |
2 kg |
This short program is intended for softening or fluffing of clothes made of wool and silk, which have to be dried thoroughly according to manufacturer's instructions. |
||||
|
|
Pillow (Feathers/Down) |
1,5 kg |
Use this programme to dry apparel stuffed or padded with down (pillows, jackets,...). Dry large items separately and use the EXTRA DRY (DRYNESS LEVEL) function if necessary. |
||||
|
Air refresh (Airing) |
2 kg |
In this programme, the heater is switched off. The programme is suitable for refreshing your laundry. |
|||||
|
|
Bedding (Bedding) |
5 kg |
Use this programme for larger items. When the programme is complete, they will be dry. Adjusted drum rotation prevents the laundry from tangling. |
||||
|
|
Baby (Baby clothes) |
4 kg |
Use this programme to dry baby clothes. Clothes dried with this programme are usually normally dry. |
||||
|
|
Sensitive (Delicate) |
1 kg |
Use this programme to dry highly delicate laundry made of synthetic fibres, which may be slightly moist after the drying process. We recommend using a special-purpose laundry bag. 1) NATUREDRY |
||||
|
|
Shirts (Shirts) |
2 kg |
Use this program to dry shirts and blouses. Adjusted drum rotation prevents the laundry from creasing. 1) NATUREDRY |
||||
|
|
Sports (Sportswear) |
3 kg |
Use this programme for clothing with a membrane, for sportswear made of mixed materials, and breathable fabrics. 1) NATUREDRY |
||||
|
|
Time dry (Timed program) 60´ 30´ |
4 kg |
Use this programme for non-sensitive laundry that is still slightly moist and has to be thoroughly dried. In the time programme, remaining moisture is not detected automatically. If the laundry is still damp after the programme is complete, repeat the programme; if it is too dry and therefore creased and rough to touch, the drying time you selected was too long. |
||||
|
Fast 89´ (Fast 89') |
4 kg |
The program is suitable for smaller amounts of laundry that you wish to dry quickly and efficiently. |
|||||
|
|||||||
If your laundry is not dried to the desired dryness level, use extra functions or use a more suitable programme.
Step 4: Selecting extra functions
Activate/deactivate the functions by pressing the desired function (before pressing the (3) START/PAUSE button).
Adjust the settings by pressing the relevant function button (before pressing the (3) START/PAUSE button).
Functions that can be changed or adjusted with the selected drying programme are partly lit (dimmed).
Certain settings cannot be selected with some programmes. Such settings will not be lit, and the button will flash when pressed (see FUNCTION TABLE).
Description of lighting of functions for the selected drying programme:
-
Lit (Basic/preset setting);
-
Dimmed (Functions that can be adjusted) and
-
Unlit (Functions that cannot be selected).
EXTRA DRY (DRYNESS LEVEL)
Press on the (4) EXTRA DRY (DRYNESS LEVEL) position to adjust - increase the dryness level and the drying duration.
This setting can be adjusted before the start of the drying process. After the drying
programme, this setting is not stored.
Two levels of extra dryness and longer drying time are available. Extra functions
(4a)
and (4b)
allow selecting a higher dryness level and extend the drying time. The light on the
selected drying mode will be lit up.
DELAY END (DELAYING THE END OF THE DRYING PROGRAM)
Press on the (5) DELAY END position (DELAYING THE END OF THE DRYING PROGRAM) to delay the drying end time by up to 24 hours.
Settings procedure:
-
Select the desired programme and extra functions.
-
Press on the (5) DELAY END position (DELAYING THE END OF THE DRYING PROGRAM) to activate the function.
-
Repeatedly press this position to set the desired drying completion time (with 30-minute increments up to 6 hours, and 1-hour increments thereafter, up to 24 hours).
-
The function is activated when the (3) START/PAUSE key is pressed.
The dryer starts counting down the time. When the countdown reaches the drying programme duration (e.g. 2:30), the drying programme starts automatically.
To interrupt or change the drying programme completion time, press (1) ON/OFF. To quickly cancel the programme completion delay, press the position (5) DELAY END (DELAYING THE END OF THE DRYING PROGRAM) and hold it for 3 seconds. The drying program will resume.
Example of function setting:
If you wish the drying programme end at 6:00 in the morning and it is now 21:00, then
set the DELAY END (DELAYING THE END OF THE DRYING PROGRAM) to 9 hours.
ANTI CREASE (CREASE PREVENTION)
The function is used to prevent creasing.
If you do not remove the laundry from the dryer immediately after the completion of
the drying programme, we recommend using the (7) ANTI CREASE (CREASE PREVENTION) function. This function has to be selected before the start of
the drying process, and it is active for 2 h.
When you open the dryer door after the completion of the drying programme, the function
is automatically deactivated.
SOUND OFF
To turn off the sound, simultaneously press the positions (4) EXTRA DRY
(DRYNESS LEVEL) and (5) DELAY END
(DELAYING THE END OF THE DRYING PROGRAM) and hold them for at least 3 seconds.
To reactivate the sound, simultaneously press the positions (4) and (5) and hold them for at least 3 seconds. If you turn off the sound, then there is no audible signal at the end of a drying programme.
CHILD LOCK
To activate or deactivate the child lock, simultaneously press the positions (5) DELAY END (DELAYING THE END OF THE DRYING PROGRAM) and (7) ANTI CREASE
(CREASE PREVENTION) and hold them for at least 3 seconds until the symbol
(6) lights up or goes off, respectively.
If the child lock is activated, programme or additional functions cannot be changed. The child lock remains active after the dryer is switched off. Therefore, it has to be deactivated before a new programme can be selected. It can also be switched off during the drying process.
Some functions are not available and cannot be selected with certain programmes; an acoustic signal and a flashing light will indicate such cases (see EXTRA FUNCTION TABLE).
After disconnecting the dryer from the power mains, all settings will be reset to their default factory values, except for the acoustic signal loudness, anti-crease, and child lock setting.
Extra function table
|
Programmes |
EXTRA DRY (DRYNESS LEVEL) |
DELAY END (DELAYING THE END OF THE DRYING PROGRAM) |
ANTI CREASE (CREASE PREVENTION) |
|
|---|---|---|---|---|
|
|
Cotton (Cotton) Storage (Cupboard dry) |
• |
• |
• |
|
|
Cotton Eco (Cotton Eco) |
• |
• |
• |
|
|
Cotton (Cotton) Iron (Moist for ironing) |
• |
• |
• |
|
|
Mix (Mixed laundry) |
• |
• |
• |
|
|
Synthetics (Synthetics) |
• |
• |
• |
|
|
Wool (Wool) |
|||
|
|
Pillow (Feathers/Down) |
• |
• |
• |
|
|
Air refresh (Airing) |
|||
|
|
Bedding (Bedding) |
• |
• |
• |
|
|
Baby (Baby clothes) |
• |
• |
• |
|
|
Sensitive (Delicate) |
• |
• |
• |
|
|
Shirts (Shirts) |
• |
• |
• |
|
|
Sports (Sportswear) |
• |
• |
• |
|
|
Time dry (Timed program) 60´ 30´ |
• |
||
|
Fast 89´ (Fast 89') |
• |
• |
||
• Additional functions can be used
If your laundry is not dried to the desired dryness level, use extra functions or use a more suitable programme.
Step 5: Starting the drying programme
Press the button (3) START/PAUSE.
Step 6: End of the drying programme
At the end of the drying programme,
("End") will appear on the display unit, the two red indicator lights will light
up, the (3) START/PAUSE button light will flash, and the light for the ANTI CREASE (CREASE PREVENTION) (7a) function, if activated or selected, will flash.
-
Open the dryer door.
-
Clean the filters (see section »CLEANING« ...).
-
Take the laundry from the drum.
-
Close the door!
-
Switch off the dryer (press the (1) ON/OFF button).
-
Empty the condensate tank.
-
Unplug the power cord from the outlet.
After the end of the drying programme, immediately remove the laundry from the dryer to prevent it from creasing again.
The final drying cycle includes a cooling down stage without heater operation. It makes sure the laundry is of suitable temperature at the end of the program and that it can be taken from the dryer without risk of touch hot clothes.
DRYING PROCESS, STEP BY STEP (1 - 6)
Step 1: Heed the labels on the laundry
You can find more detailed instructions online.
Step 2: Preparing for the laundry drying process
Sort the laundry by type and thickness of the fabric (see PROGRAMME TABLE).
Drying laundry made of particularly delicate fabrics that may be deformed is not recommended. The following types of laundry may not be dried in the dryer as this may cause your garments to deform:
-
leather garments and other leather products,
-
garments that are waxed or treated in any other way,
-
garments with major wooden, plastic, or metal parts;
-
garments with spangles;
-
garments with metal parts subject to rusting.
Switching on the dryer
With some models, the dryer drum is lit as well.
(The light in the dryer drum is not suitable for any other use.)
The light in the dryer drum may only be replaced by the manufacturer, a service technician or an authorized person.
Loading the dryer
Do not insert laundry into the dryer if it has not been wrung or spun (recommended minimum spinning cycle: 800 rpm).
When drying larger items (bedding, towels, tablecloths etc.), loosen them and then insert them into the dryer drum.
Do not overload the drum! See PROGRAMME TABLE and observe your nominal load as indicated on the rating plate.
If the dryer drum is overloaded, the laundry will be more wrinkled and perhaps unevenly dried.
Step 3: Choosing the drying programme
Choose the programme by rotating the programme selector knob (2) to the left or to the right (depending on the type of laundry and the desired level of dryness). See PROGRAMME TABLE.
Program chart
|
Program Dryness levels |
Max. load |
Programme description |
|||
|---|---|---|---|---|---|
|
|
Cotton (Cotton) Storage (Cupboard dry) |
7 kg |
Use this programme for thicker non-sensitive cotton laundry. After drying, it will be dry and ready to be stored in the cupboard. |
||
|
|
Cotton Eco* (Cotton Eco) |
7 kg |
The Eco programme is suitable to dry wet cotton laundry, and is the most efficient programme in terms of energy consumption for drying wet cotton laundry. |
||
|
|
Cotton (Cotton) Iron (Moist for ironing) |
7 kg |
Use this program for non-sensitive cotton laundry. After drying, it will be ready for ironing. |
||
|
|
Mix (Mixed laundry) |
3,5 kg |
The program is used for drying cotton and synthetic laundry at the same time. |
||
|
|
Synthetics (Synthetics) |
3,5 kg |
The program is used for drying synthetic and blended textiles. |
||
|
|
Wool (Wool) |
2 kg |
This short program is intended for softening or fluffing of clothes made of wool and silk, which have to be dried thoroughly according to manufacturer's instructions. |
||
|
|
Pillow (Feathers/Down) |
1,5 kg |
Use this programme to dry apparel stuffed or padded with down (pillows, jackets,...). Dry large items separately and use the EXTRA DRY function if necessary. |
||
|
Air refresh (Airing) |
2 kg |
In this programme, the heater is switched off. The programme is suitable for refreshing your laundry. |
|||
|
|
Bedding (Bedding) |
5 kg |
Use this programme for larger items. When the programme is complete, they will be dry. Adjusted drum rotation prevents the laundry from tangling. |
||
|
|
Baby (Baby clothes) |
4 kg |
Use this programme to dry baby clothes. Clothes dried with this programme are usually normally dry. |
||
|
|
Sensitive (Delicate) |
1 kg |
Use this programme to dry highly delicate laundry made of synthetic fibres, which may be slightly moist after the drying process. We recommend using a special-purpose laundry bag. |
||
|
|
Shirts (Shirts) |
2 kg |
Use this program to dry shirts and blouses. Adjusted drum rotation prevents the laundry from creasing. |
||
|
|
Sports (Sportswear) |
3 kg |
Use this programme for clothing with a membrane, for sportswear made of mixed materials, and breathable fabrics. |
||
|
|
Time dry (Timed program) 60´ 30´ |
4 kg |
Use this programme for non-sensitive laundry that is still slightly moist and has to be thoroughly dried. In the time programme, remaining moisture is not detected automatically. |
||
|
Fast 89´ (Fast 89') |
4 kg |
The program is suitable for smaller amounts of laundry that you wish to dry quickly and efficiently. |
|||
|
|||||
Step 4: Selecting extra functions
Activate/deactivate the functions by pressing the desired function (before pressing the (3) START/PAUSE button).
Description of lighting of functions for the selected drying programme:
-
Lit (Basic/preset setting);
-
Dimmed (Functions that can be adjusted) and
-
Unlit (Functions that cannot be selected).
|
|
EXTRA DRY (DRYNESS LEVEL) Press on the (4) EXTRA DRY position to adjust - increase the dryness level and the drying duration. This setting
can be adjusted before the start of the drying process. |
|
|
DELAY END (DELAYING THE END OF THE DRYING PROGRAM) Press on the (5) DELAY END position to delay the drying end time by up to 24 hours. The dryer starts counting down the time. When the countdown reaches the drying programme duration (e.g. 2:30), the drying programme starts automatically. |
|
|
ANTI CREASE (CREASE PREVENTION) If you do not remove the laundry from the dryer immediately after the completion of the drying programme, we recommend using the (7) ANTI CREASE function. This function has to be selected before the start of the drying process, and it is active for 2 h. |
|
|
SOUND OFF To turn off the sound, simultaneously press the positions (4) EXTRA DRY |
|
|
CHILD LOCK To activate or deactivate the child lock, simultaneously press the positions (5) DELAY END |
Step 5: Starting the drying programme
Press the button (3) START/PAUSE.
Step 6: End of the drying programme
At the end of the drying programme, ("End") will appear on the display unit, the two red indicator lights will light
up, the (3) START/PAUSE button light will flash, and the light for the ANTI CREASE (CREASE PREVENTION) (7a) function, if activated or selected, will flash.
-
Open the dryer door.
-
Clean the filter (see section »CLEANING« ...).
-
Take the laundry from the drum.
-
Close the door!
-
Switch off the dryer (press the (1) ON/OFF button).
-
Empty the condensate tank.
-
Unplug the power cord from the outlet.
The final drying cycle includes a cooling down stage without heater operation. It makes sure the laundry is of suitable temperature at the end of the program and that it can be taken from the dryer without risk of touch hot clothes.
INTERRUPTIONS AND CHANGING THE PROGRAMME
Interruptions
Interrupting the programme process
Press the (3) START/PAUSE button to pause/resume a programme.
To stop and cancel the drying programme, press the (3) START/PAUSE button and hold it for 3 seconds. The selected programme will stop, and the dryer will start to cool down. Cooling down time depends on the selected programme. After this process, the drying programme can be selected again.
Open door
If the dryer door is opened during the drying process, the drying cycle will be interrupted.
When the door is closed and the (3) START/PAUSE button is pressed, the drying will resume from the point at which it was interrupted.
The dryer door will heat up during the drying process. Make sure you do not burn yourself when opening the dryer door.
Full condensate tank
When the condensate tank is full, the drying programme will pause (the symbol (10) and the sign
will be lit).
Empty the condensate tank (see chapter »CLEANING AND MAINTENANCE/Emptying the condensate tank«).
Press the (3) START/PAUSE button to resume the drying programme from the point at which it was interrupted.
Power supply failure
When power supply is resumed, the signal light on the (3) START/PAUSE button will flash.
To resume the drying process, press the (3) START/PAUSE button.
Changing the program/functions
Switch off the dryer by pressing the button (1) ON/OFF; then, switch it on again by pressing the button (1) ON/OFF and rotate the (2) programme selector knob to the desired programme, or choose extra functions.
Select another program/function and press the (3) START/PAUSE button again.
Adding laundry after the start of the program
Open the dryer door and press the (3) START/PAUSE button. Insert the laundry and press the button (3) START/PAUSE.
When loading the laundry, make sure you do not burn yourself when you open the dryer door.
Drying time may be extended.
Saving personal settings
Initial settings may be changed.
When the program and additional functions are selected, you may store such combination by pressing the (3) START/PAUSE key and holding it for 3 seconds. A signal light on the (3) START/PAUSE key and an acoustic signal will confirm your selection. Indication »saved« »(saved)« will be appear briefly on the display unit (9).
Press the (3) START/PAUSE button to start the drying process
The changed combination will appear every time you switch on the dryer.
Follow the same procedure to change a previously saved combination.
Personal settings menu
Switch on the dryer by pressing the (1) ON/OFF button. To open the Personal settings menu, simultaneously press on the positions
(4) EXTRA DRY (DRYNESS LEVEL) and (7) ANTICREASE (CREASE PREVENTION) and hold them for 3 seconds. The symbols (8) CLEAN THE FILTER
and (10) CONDENSATE TANK will light up on the display unit.
Number 1 will appear on the LED display, indicating the settings function. Rotate the programme selector knob (2) to the left or to the right to choose the function to change. Number 1 indicates sound settings and number 2 indicates resetting of Personal programme settings to factory defaults. If the desired settings are not selected in 20 seconds, the programme will automatically return to main menu.
Press on the position (5) DELAY END (DELAYING THE END OF THE DRYING PROGRAM) to confirm the desired functions and their
relevant settings. Press on the position (4) EXTRA DRY (DRYNESS LEVEL) to go back one step.
Acoustic signal volume can be set at four levels (0 means the sound is off; 1 means that the button sound is activated; 2 means low volume, and 3 means high volume). Choose the volume level by rotating the programme selector knob (2) to the left or to the right. The lowest setting means that the acoustic signal is switched off.
CLEANING AND MAINTENANCE
Before cleaning, make sure to switch off the dryer and disconnect it from the power mains (unplug the power cord from the outlet).
The dryer is fitted with a filtering system consisting of several filters that prevent any impurities from entering the heat exchanger system.
|
|
1Lint filter |
|
2Heat pump filter |
|
|
3Condensate tank |
The dryer may never be operated without the filters in place or with damaged filters, as excessive amount of accumulated fibres from the fabric could cause malfunction or failure of the dryer.
Cleaning the door net filter in the door
Clean the lint filter after each drying cycle.
|
|
|
|
1Open the filter housing. |
|
|
2 Pull out the lint filter. |
|
|
3Gently scrape the filter to remove the lint, i.e. the lining of fibres and threads, with your hand or with a cloth. |
|
|
4If necessary, clean the filter housing and door gasket as well. |
|
|
5Insert the net filter and close the filter housing. |
Make sure you do not pinch your fingers with the filter cover.
Cleaning the heat pump filter
During cleaning, some water may be spilled. It is therefore recommended to place an absorbent cloth on the floor.
|
|
|
|
1Open the outside cover. Hold the levers on the inside cover and rotate them as indicated by the arrows. |
|
|
2Remove the inside cover along with the heat pump filter. |
|
|
3Detach the front filter part from the heat pump filter housing |
|
|
4,5Pull the foam filter from the housing. Clean it with a vacuum cleaner and a soft brush attachment. Reinstall the clean foam filter into the filter housing. |
and open it. Push the foam part of the filter out from the housing. Use a damp cloth
to clean the heat pump filter mesh.Do not rinse the foam filter under water to avoid micro-plastic effluent into the groundwater!
Insert the heat pump foam filter into the housing and close the outer cover (push it upwards toward the machine until it latches into place).
The heat pump filter has to be correctly inserted into its slot. Otherwise, the heat exchanger installed inside the dryer may be clogged or damaged.
Clean the foam filter at least after every five drying cycles.
Cleaning of the heat exchanger
Do not touch the inner metal parts of the heat exchanger with bare hands. Danger of injury on sharp parts. Use appropriate protection gloves when cleaning the heat exchanger.
Incorrect cleaning of the metal fins of the heat exchanger can permanently damage the tumble dryer. Do not press on the metal fins with hard objects like for example the plastic tube of a vacuum cleaner.
The dust and dirt in the metal fins of the heat exchanger can be cleaned with a vacuum cleaner and a soft brush attachment.
Access to the heat exchanger is possible, when the heat pump filter is removed as is described in the chapter »Cleaning the heat pump filter«.
Without pressing, gently move the brush attachment only in the direction of the metal fins from top to bottom. Too much pressure can damage or bend the metal fins of the heat exchanger.
We recommend you clean the heat exchanger at least every twelve months.
Emptying the condensate tank
Empty the condensate tank after each drying cycle.
If the condensate tank is full, the drying programme will be paused automatically.
Symbol (10) will light up on the display unit, indicating that the condensate tank should be
emptied.
|
|
|
|
1Pull out the condensate tank from the dryer (using both hands as shown in the figure), then turn it upside down over a washbasin, sink, or any suitable vessel. |
|
|
2,3Empty the condensate tank. Pull out the spout at the opening for easier emptying. Replace the condensate tank. |
Water from the condensate tank is not drinkable. If thoroughly filtered, it can be used for ironing.
Never add chemicals or fragrances into the condensate tank.
It is not necessary to empty the condensate tank if the drain hose is connected directly to a drain (see chapter »INSTALLATION AND CONNECTION/Draining the condensate«).
Cleaning the dryer
Always disconnect the dryer from the power mains before cleaning.
Clean the dryer exterior using a soft damp cotton cloth.
Do not use any solvents or cleaning agents that could damage the dryer (please observe the recommendations and warnings provided by the manufacturers of the cleaning agents).
Wipe all parts of the dryer with a soft cloth until dry.
Do not clean the dryer with a jet of water!
CLEANING AND MAINTENANCE
Before cleaning, make sure to switch off the dryer and disconnect it from the power mains (unplug the power cord from the outlet).
-
Lint filter
-
Heat pump filter
-
Condensate tank
Cleaning the door net filter in the door
Clean the lint filter after each drying cycle.
Cleaning the heat pump filter
Insert the heat pump foam filter into the housing and close the outer cover (push it upwards toward the machine until it latches into place).
The heat pump filter has to be correctly inserted into its slot. Otherwise, the heat exchanger installed inside the dryer may be clogged or damaged.
Do not rinse the foam filter under water to avoid micro-plastic effluent into the groundwater!
Cleaning of the heat exchanger
We recommend you clean the heat exchanger at least every twelve months.
Emptying the condensate tank
Empty the condensate tank after each drying cycle.
TROUBLE-SHOOTING
What to do ...?
Disturbances from the environment (e.g. the power grid) may result in various error reports (see TROUBLESHOOTING TABLE). In such case:
-
Switch off the dryer and wait at least one minute.
-
Switch on the dryer and repeat the drying programme.
-
Most errors during operation can be resolved by the user (see TROUBLESHOOTING TABLE).
-
If the error occurs again, call an authorized service unit.
-
Repairs may only be carried out by an adequately trained person.
-
Repair or any warranty claim resulting from incorrect connection or use of the dryer shall not be covered by the warranty. In such cases, the costs of repair shall be charged to the user.
Troubleshooting and error table
|
Problem/Error |
Cause |
What to do? |
|---|---|---|
|
The machine will not start. |
|
|
|
|
|
|
There is voltage in the outlet, but the drum does not spin and the appliance does not work. |
|
|
|
|
|
|
|
|
|
The appliance stops heating completely during a programme. |
|
|
|
A slight hitting noise appears. |
|
|
|
The door opens during drying. |
|
|
|
Unevenly dried laundry. |
|
|
|
Laundry not dried or drying takes too long |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Drum lighting error (depending on the model) |
|
|
The following lists all the errors that the user can see on the user interface.
|
Problem/Error |
Indication on the display unit and description of error |
What to do? |
|---|---|---|
|
|
Control unit failure |
Call service centre. |
|
|
Temperature sensor failure |
Call service centre. |
|
|
Communication error |
Call service centre. |
|
|
Pump error |
Call service centre. |
|
|
System overheating |
Clean the filters. See chapter »CLEANING AND MAINTENANCE/Cleaning the net filter in the door« or call a service technician. |
|
|
Control unit failure |
Disconnect the tumble dryer from the power supply. Call service centre. |
Warnings/information for the user, which can be indicated on the display unit, may include the following:
|
Warning |
Indication on the display unit and description of warning |
What to do? |
|---|---|---|
|
|
Condensate tank warning |
Empty the condensate tank before resuming the programme (see chapter »CLEANING AND MAINTENANCE/Emptying the condensate tank«). |
|
|
Power supply failure warning |
Drying interrupted due to power supply failure. Press the (3) START/PAUSE button to restart or resume the drying programme. |
|
|
At the end of the drying programme, Two red symbols This is not a fault; it is just a warning that the filters need to be cleaned after drying. |
Clean the filters and empty the condensate tank. |
Write down the error code (e.g. E0, E1), switch off the dryer, and call the nearest authorized service (call centre).
Sounds
In the initial drying stage or during drying, the compressor and the heat pump cause noise; this, however, does not affect the tumble dryer operation.
Humming sound: compressor noise; the noise level depends on the program and the drying stage.
Buzzing sound: the compressor is occasionally ventilated.
Pumping or liquid flowing sound: the pump is pumping the condensate into the condensate tank.
Clicking sound: start of automatic cleaning of the heat exchanger (compressor).
Rumbling or rattling noise: during drying when the laundry also includes hard parts (such as buttons, zippers
etc.)
Service
Before calling a service center
When you contact a service centre, please state your dryer's type (1), code/ID (2), model number (3), and serial number (4).
Dryer type, code, model, and serial number can be found on the rating (type) plate on the inner side of the dryer door.
In case of a failure, only use approved spare parts by authorized manufacturers.
Repair or any warranty claim resulting from incorrect connection or use of the dryer shall not be covered by the warranty. In such cases, the costs of repair shall be charged to the user.
The warranty does not cover the errors or failures resulting from disturbances from the environment (lightning strike, power grid failures, natural disasters etc.).
Report any malfunction to your local call centre or web address www.gorenje.com; all information can be found in the enclosed warranty statement. Contact details of your authorised service centre are available in the warranty statement supplied with the appliance and on the website by scanning the QR code on the rating plate (see chapter »DESCRIPTION OF THE DRYER/Technical data«).
Some simple faults described in the chapter »TROUBLESHOOTING/Troubleshooting and error table« can be fixed by the user himself by taking into account the instructions without risk to their own safety and without affecting the warranty conditions.
Spare parts for the dryer you have purchased are available for 10 years. During this
time, original spare parts will be available to ensure the correct operation of your
appliance.
The list of spare parts is available on the website: https://partners.gorenje.com/GSD/gsd_public.aspx
TROUBLE-SHOOTING
Troubleshooting and error table
The following lists all the errors that the user can see on the user interface.
|
Display indicator |
Error description |
What to do? |
|---|---|---|
|
E:00 |
Control unit failure |
Call service centre. |
|
E:01 |
Temperature sensor failure |
Call service centre. |
|
E:02 |
Communication error |
Call service centre. |
|
E:03 |
Pump error |
Call service centre. |
|
E:04 |
System overheating |
Clean the filters. See chapter »CLEANING AND MAINTENANCE/Cleaning the net filter in the door« or call a service technician. |
|
E:06 E:07 |
Control unit failure |
Disconnect the tumble dryer from the power supply. Call service centre. |
Warnings/information for the user, which can be indicated on the display unit, may include the following:
|
Display indicator |
Warning description |
What to do? |
|---|---|---|
|
|
Condensate tank warning |
Empty the condensate tank before resuming the programme (see chapter »CLEANING AND MAINTENANCE/Emptying the condensate tank«). |
|
|
Power supply failure warning |
Drying interrupted due to power supply failure. Press the (3) START/PAUSE button to restart or resume the drying programme. |
|
|
At the end of the drying programme, Two red symbols |
This is not a fault; it is just a warning that the filters need to be cleaned after drying. Clean the filters and empty the condensate tank. |
Service
Before calling a service center
|
|
When you contact a service centre, please state your dryer's type (1), code/ID (2), model number (3), and serial number (4). Type, code/ID, model, and serial number are indicated on the rating (type) plate located on the front side of the dryer door opening. |
In case of a failure, only use approved spare parts by authorized manufacturers.
Repair or any warranty claim resulting from incorrect connection or use of the dryer shall not be covered by the warranty. In such cases, the costs of repair shall be charged to the user.
The warranty does not cover the errors or failures resulting from disturbances from the environment (lightning strike, power grid failures, natural disasters etc.).
Report any malfunction to your local call centre or web address www.gorenje.com; all information can be found in the enclosed warranty statement. Contact details of your authorised service centre are available in the warranty statement supplied with the appliance and on the website by scanning the QR code on the rating plate (see chapter »DESCRIPTION OF THE DRYER/Technical data«).
Spare parts for the dryer you have purchased are available for 10 years. During this
time, original spare parts will be available to ensure the correct operation of your
appliance.
The list of spare parts is available on the website: https://partners.gorenje.com/GSD/gsd_public.aspx
Link to the EU EPREL database
From 1 March 2021, information on energy labelling and ecodesign requirements is available in the EU EPREL product database.
The QR code on the energy label supplied with the appliance contains a web link through
which you can find your registered appliance in the EU EPREL database.
Information regarding the performance of the product can also be found in the EU EPREL
database, which is accessible via the link https://eprel.ec.europa.eu, where you have to enter the model and product number; both are indicated on the
rating plate on the appliance. On the website www.theenergylabel.eu you can find more detailed information about the energy label.
Keep the energy label in case it is needed in the future, together with the user manual and other documents supplied with this appliance.
TIPS FOR DRYING AND ECONOMIC USE YOUR DRYER
The most economical way of drying is to dry the recommended amount of laundry in each batch (see PROGRAMME TABLE).
Drying laundry made of particularly delicate fabrics that may be deformed is not recommended.
Use of conditioner in the washing cycle is not necessary as the laundry is soft and smooth after drying in the dryer. Drying time will be shorter and power consumption will be lower if the garments are thoroughly wrung or spun before drying. By selecting the appropriate drying programme, you will avoid over-drying your laundry and problems with ironing or shrinkage of fabric.
Regular cleaning of the filters will lead to optimum drying time and minimum power consumption.
When drying smaller amounts of laundry or individual garments, the sensor may not perceive the actual level of moisture in the laundry. In such cases, it is recommended to dry smaller items or amounts with programmes for dryer laundry or with the timed programme.
TYPICAL CONSUMPTION TABLE
The table lists the values for drying time and power consumption for drying of a test batch of laundry with various spinning rpm in the washing machine.
7 kg D class
|
Program |
Rated capacity [kg] |
Final moisture content [%] |
Programme duration [h:min] |
Electricity consumption [kWh/cycle] |
Acoustic airborne noise emission [dB] |
|---|---|---|---|---|---|
|
Cotton Eco* (Cotton Eco) |
7 |
0 ± 3 |
2:25 |
1,46 |
63 |
|
3,5 |
1:29 |
0,97 |
|||
|
Storage Cotton (Cupboard dry) |
7 |
-2 |
2:45 |
1,67 |
|
|
3,5 |
1:40 |
1,02 |
|||
|
Iron Cotton (Moist for ironing) |
7 |
12 ± 4 |
1:50 |
1,15 |
|
|
3,5 |
1:10 |
0,76 |
|||
|
Sensitive (Delicate) |
1 |
0 |
0:30 |
0,28 |
|
|
Synthetics (Synthetics) |
3,5 |
2 ± 3 |
1:00 |
0,55 |
|
|
Mix (Mixed laundry) |
3,5 |
-2 |
1:40 |
1,02 |
|
* |
The Cotton Eco programme is suitable for drying wet cotton laundry and is used to assess compliance with EU legislation on eco-design. |
|
|
The Cotton Eco programme is the most efficient programme in terms of energy consumption for drying wet cotton laundry. |
|
|
All values in the table are provided per drying cycle. |
|
|
The values provided for all programmes, except for the Cotton Eco programme, are for information only. |
You can save energy by filling up the household tumble dryer to the maximum capacity specified for each programme.
Due to deviations in terms of type and amount of laundry, power supply oscillation, and environment temperature and humidity, the values measured at the end user may differ from the one stated in the table.
Low standby mode
If you do not run a programme or do anything else after switching on the dryer, the dryer will switch off automatically after 5 minutes to save energy. Indicator light on the (3) START/PAUSE button will flash.
The display will be reactivated if you rotate the programme selector knob or press the (1) ON/OFF button or open the dryer door. If you do not do anything for 5 minutes after the end of the programme, the display unit will be switched off as well. Indicator light on the (3) START/PAUSE button will flash.
|
P o = weighted power when off [W] |
< 0,5 |
|
P I = weighted power when in standby [W] |
< 0,5 |
|
T I = standby time [min] |
5,00 |
Low mains voltage and different drying loads may affect the drying time; the remaining time displayed is adjusted accordingly during the drying process.
PRODUCT ENERGY LABEL AND PRODUCT FICHE
(depending on the model)
PRODUCT INFORMATION SHEET
PRODUCT INFORMATION SHEET According to EU-Commission Delegated Regulation No. 2023/2534
(depending on the model)
|
Supplier’s name or trade mark (a),(c): |
|||||
|
Supplier’s address (a),(c): |
|||||
|
Model identifier (a): |
|||||
|
Technology of tumble dryer: |
[electric air-vented, electric condenser, gas-fired] |
||||
|
General product parameters: |
|||||
|
Parameter |
Value |
Parameter |
Value |
||
|
Rated capacity (b) (kg) |
x,x |
Dimensions (a), (c) in cm |
Height |
x |
|
|
Width |
x |
||||
|
Depth |
x |
||||
|
Energy Efficiency Index (EEI) (b) |
x,x |
Energy efficiency class (b) |
[A/B/C/D/E/F/G] (d) |
||
|
Condensation efficiency (%) (b) (if applicable) |
xx |
Condensation efficiency class (if applicable) (b) |
[A/B/C/D] (d) |
||
|
Weighted energy consumption in kWh per drying cycle (h). Actual energy consumption will depend on how the appliance is used. |
x,xx |
||||
|
Programme duration (b) (hours:minutes) |
Rated capacity |
x:xx |
Type |
[built-in/ free standing] |
|
|
Half |
x:xx |
||||
|
Acoustic airborne noise emission (b) (dB(A) re 1 pW) |
x |
Acoustic airborne noise emission class (b) |
[A/B/C/D] (d) |
||
|
Off-mode |
x,xx |
Standby mode (if applicable) (W) |
x,xx |
||
|
Delay start (W) |
x,xx |
Networked standby (W) |
x,xx |
||
|
For household tumble dryers equipped with a heat pump, the chemical name or the accepted industry designation of the refrigerant gas used, without prejudice to Regulation (EU) No 517/2014 on fluorinated greenhouse gases (1) (a), (c). |
|||||
|
Weblink to information on spare parts availability for professional repairers and end users (a) (c) (e) |
https://xxx |
||||
|
Weblink to repair instructions for end-users (a) (c) (f) |
https://xxx |
||||
|
Weblink to indicative pre-tax prices (a) (c) (g) |
https://xxx |
||||
|
Minimum duration of the guarantee offered by the supplier (1) (c) |
|||||
|
Additional information (1) (c): |
|||||
|
Link to the supplier’s website, where the information in point 6 of Annex II to Commission Regulation (EU) 2023/2533 (c) (2) is found: |
|||||
|
(1) |
Regulation (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and repealing Regulation (EC) No 842/2006 (OJ L 150, 20.5.2014, p. 195). |
|
(2) |
Commission Regulation (EU) 2023/2533 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for household tumble dryers, amending Commission Regulation (EU) 2023/826, and repealing Commission Regulation (EU) No 932/2012 (OJ L, 2023/2533, 22.11.2023, ELI: http://data.europa.eu/eli/reg/2023/2533/oj). |
|
(a) |
This item shall not be considered relevant for the purpose of Article 2 (6) of Regulation (EU) 2017/1369. |
|
(b) |
For the eco programme. |
|
(c) |
Changes to those items shall not be considered relevant for the purpose of Article 4 (4) of Regulation (EU) 2017/1369. |
|
(d) |
If the product database automatically generates the definitive content of that cell the supplier shall not enter those data. |
|
(e) |
The suppliers’ obligation is to include the weblink to the website where the relevant information will be available. Effective access to the website is nevertheless to be granted in accordance with the timeline and provisions laid down in Annex II, point 5 (1) (b) of Regulation (EU) 2023/2533. |
|
(f) |
The suppliers’ obligation is to include the weblink to the website where the relevant information will be available. Effective access to the website is nevertheless to be granted in accordance with the timeline and provisions laid down in Annex II, point 5 (1) (d) of Regulation (EU) 2023/2533. |
|
(g) |
The suppliers’ obligation is to include the weblink to the website where the relevant information will be available. Effective access to the website is nevertheless to be granted in accordance with the timeline and provisions laid down in Annex II, point 5 (1) (f) of Commission Regulation (EU) 2023/2533. |
|
(h) |
For gas-fired tumble dryers calculated as the weighted average energy consumption per 100 drying cycles according to Annex IV point 1(f), divided by 100. |
DISPOSAL
|
Packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. To this end, packaging materials are labelled appropriately. |
|
|
|
The symbol on the product or its packaging indicates that the product should not be treated as normal household waste. Take the product to an authorized collection centre for waste electric and electronic equipment processing. |
|
When disposing of the appliance at the end of its useful life, remove all power cords, and destroy the door latch and switch to prevent the door from locking or latching (child safety). |
|
|
Correct disposal of the product will help prevent any negative effects on the environment and health of people, which could occur in case of incorrect product removal. For detailed information on removal and processing of the product, please contact the relevant municipal body in charge of waste management, your waste disposal service, or the store where you bought the product. |
DISPOSAL
|
|
Packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. To this end, packaging materials are labelled appropriately. |
|
The symbol on the product or its packaging indicates that the product should not be treated as normal household waste. Take the product to an authorized collection centre for waste electric and electronic equipment processing. |
|
|
When disposing of the appliance at the end of its useful life, remove all power cords, and destroy the door latch and switch to prevent the door from locking or latching (child safety). |
|
|
Correct disposal of the product will help prevent any negative effects on the environment and health of people, which could occur in case of incorrect product removal. For detailed information on removal and processing of the product, please contact the relevant municipal body in charge of waste management, your waste disposal service, or the store where you bought the product. |
|
NOTES
We reserve the right to any changes and errors in the instructions for use.
