The manufacturer cannot be held liable for any damage resulting from failure to follow the safety instructions and warnings.

Damage caused by incorrect connection, incorrect fitting, or incorrect use is not covered by the warranty.

• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• This appliance is only designed for household use.

• Always provide adequate ventilation!

• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.

• When the range hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 × 10-5 bar).

• Local regulations concerning the discharge of air have to be fulfilled.

• Never use a steam cleaner for cleaning the appliance. Only clean the appliance when switched off. The steam of a steam cleaner could reach the conducting parts and cause an electrical short.

• Only use the appliance inside the home.

• Do not use the cooker hood if the grease filter has not been fitted properly!

• Do not lean against the cooker hood.

• Never use the cooker hood as a working surface unless this is indicated explicitly.

• Grease and oil are inflammable when overheated. Remain in the cooking area when preparing meals.

• To prevent hot fat from catching fire, you should only deep-fry under continuous supervision.

• The cooker hood should be cleaned regularly both on the outside as well as the inside (at least 1 x per month). Insufficient cleaning or a delay in the replacement of filters can cause a fire hazard.

• Clean the filters on time.

• The grease filters can become hot during use. After cooking wait at least 30 minutes before cleaning.

• Please note! Intensive use can lead to condensation on the cooker hood. Condensation is simple to remove with a dry cloth.

• Follow the instructions in the manual for cleaning or replacing the grease filters and/or carbon filters!

• The appliance may have sharp edges; please be careful during cleaning.

• The light emitted by LED lights is very dazzling and can damage the eyes. Do not look directly into the switched on LED lights for longer than 100 seconds.

• When washing grease filters in the dishwasher it is recommended to use a short, non-intensive programme. Check the grease filter after washing in the dishwasher for wear (loose material). Wear can occur as a result of frequent washing. If loose material is visible, replace the filters in order to prevent this loose material from ending up in the food that is cooked.

• Do not use the appliance in temperatures below 5 °C.

• Keep a 20 cm separation distance to the appliance.

• To use the Wi-Fi connectivity of the cooking hob, the range of your Wi-Fi router must extend to the hob. The cooking hob only supports 2.4 GHz networks. If, during the connection setup, your home network is not shown, check the router settings for 2.4 GHz, that the network is not hidden and the signal is strong enough.

• Additionally, a mobile device with an installed ConnectLife-app and a registered user account is required (see chapter 'ConnectLife-app').

The ConnectLife app is available on the Apple App Store and Google Play Store. After being paired with the hood, you can use the app to monitor the status of the hood.

Go to www.connectlife.io/getstarted to download the ConnectLife-app, information about the system, support and available features. Find additional options under www.connectlife.io.

Getting started with the ConnectLife-app

Get started with your ConnectLife-app in 3 easy steps. Please check as addition chapter “First steps to set up the Wi-Fi connectivity”. More help under www.connectlife.io/getstarted.

1. Registration:

   • Install the ConnectLife-app.

   • Start the app.

   • Choose “Get Started” and follow the process.

   • If you are already registered, use the “Sign In” option.

2. Add the hood:

   • In the app: Go to “Appliances”.

   • Choose “Add Appliances” or touch the + (plus) key.

   • Make sure Wi-Fi on the hood is turned ON, and the hood is in connection setup mode (see as addition 'First steps to set up the Wi-Fi connectivity').

   • Follow the instructions of the ConnectLife-app.

3. Start cooking:

   Congratulation, you can now start using ConnectLife together with your appliance.

1. Check the “Requirements” as described above.

2. The hood and lights must be switched off.

3. Touch and hold simultaneously the – (minus) key and the + (plus) key for 3 seconds. All the indicators on the hood and remote will blink.

4. Press any key to enter the Wi-Fi configuration menu. Speed levels 2, 3 and 4 indicators light up.



5. Touch the – (minus) key to turn on Wi-Fi. The Wi-Fi indicator will turn on and speed level 2 and 3 indicators will blink 3 times.



6. After 3 seconds it will return to the Wi-Fi-menu.



7. Touch the + (plus) key to enter the connection menu. Confirm with the timer key to start the 'Connection menu'. Speed level 2 indicator and Wi-Fi indicator will blink during the connection time. This mode will be disabled automatically after 5 minutes.



8. Start the ConnectLife-app and follow the instructions in the app.

9. If the ConnectLife-app does not connect to the device, wait 10 minutes and repeat the steps described or to leave the Wi-Fi menu touch and hold the light key for 3 seconds.

• The Connection Setup Mode

• The Pairing Mode

• Remote control mode

If more than 1 option is available then use the + (plus) and - (minus) keys to toggle between the options.

• The appliance must be connected to the Cloud for the application to monitor and control the appliance remotely.

• Speed level 2 indicator and Wi-Fi indicator will light up.



• Touch the timer key to enable 'Connection Setup Mode'. Speed level 2 indicator will flash.

• This mode will be disabled automatically after 5 minutes.

• Follow the instructions of the ConnectLife-app.

When the process was successful and you want to pair another user, you can use the “Pairing mode” of the Wi-Fi menu and the “Pairing” or “Discovery” option of the ConnectLife-app. In the ConnectLife-app, select option 'Add Appliance' and follow the instructions.

• Touch the timer key to enable 'Pairing mode'. The speed level 3 indicator will flash.



• This mode will be disabled automatically after 3 minutes.

• On the ConnectLife-app, use the 'Pairing' or 'Discovery' option of the ConnectLife app to pair another user.

To be able to change function settings remotely, the appliance must be switched on and the ConnectLife-app must be enabled. Speed level 4 indicator and Wi-Fi indicator will lit static.

Remote control mode is only available if the Wi-Fi connectivity setup has been performed. Touch the timer key to enable 'Remote control'.

• Speed level 4 indicator is blinking: Remote control is enabled.



• Speed level 4 indicator lit static: Remote control is disabled.



To close the Wi-Fi menu, touch and hold the light key for 3 seconds. If no key is touched within 10 minutes, the Wi-Fi menu will be switched off automatically, the hood will be back in standby mode.

To access the Wi-Fi menu the hood must be on standby (the hood and lights must be switched off).

• Touch and hold simultaneously the – (minus) key and the + (plus) key for 3 seconds. All the indicators on the hood and remote will blink.

• Press any key to enter the Wi-Fi configuration menu. Speed levels 2, 3 and 4 indicators light up.



• The hood and lights must be switched off.

• Touch and hold simultaneously the – (minus) key and the + (plus) key for 3 seconds. All the indicators on the hood and remote will blink.

• Press any key to enter the Wi-Fi configuration menu. Speed levels 2, 3 and 4 indicators light up.



• Touch the – (minus) key to turn on Wi-Fi. speed level 2 and 3 indicators will blink 3 times. The Wi-Fi indicator will turn on. After 3 seconds it will return to the Wi-Fi menu.



• The hood and lights must be switched off.

• Touch and hold simultaneously the – (minus) key and the + (plus) key for 3 seconds. All the indicators on the hood and remote will blink.

• Press any key to enter the Wi-Fi configuration menu. Speed levels 2, 3 and 4 indicators light up.



• Touch the – (minus) key to turn off Wi-Fi. speed level 2 and 3 indicators will lit static. The Wi-Fi indicator will turn off. After 3 seconds it will return to the Wi-Fi menu.



• To leave the Wi-Fi menu touch and hold the '-' (minus) key for 3 seconds.

• Wi-Fi module disabled: Wi-Fi indicator is off.

• Configuration in progress: Wi-Fi indicator flashes.

• Connected to home network router: Wi-Fi indicator flashes.

• Connected to home network router and cloud: Wi-Fi indicator continuously lit.

Clean the cooker hood with soapy water and a soft cloth.

Then rinse with clean water. Do not use aggressive cleaning agents such as caustic soda. The cooker hood finish stays in good condition if it is buffed periodically following the application of wax.

Metal grease filters should be cleaned once a month (or when indicated by the filter cleaning indicator – if present on the model) using a neutral cleaning agent, either by hand or in the dishwasher on a short, low-temperature program. Place the grease filters with the openings facing downwards in the dishwasher so the water can drain out of the filter. Aluminium grease filters become dull as a result of dishwasher cleaning agents. This is normal and does not effect the working.

The filters can be cleaned in the dishwasher. Allow the filters to drain well before replacing.

The filters can also be cleaned by hand.

Clean the filters in soapy water with washing up liquid and rinse. Allow the filters to drain well. The underside of the cooker hood can be cleaned with a mild cleaning agent and a damp cloth. Dry off with a paper towel.

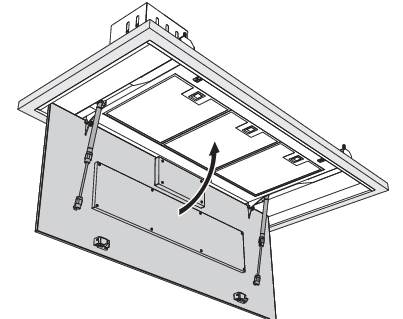

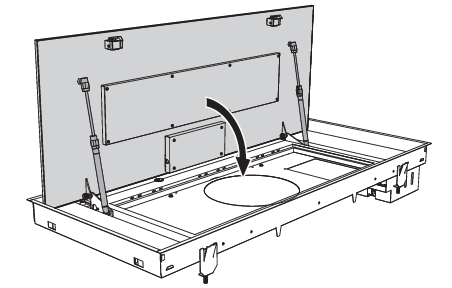

The filter should be placed with the locking mechanism on the front. Open the filter access latch. The notches at the front of the filter will then slot in. Hold the access latch in this position when placing the filters.

1. Slot the notches at the back of the filter in the specially designed opening of the cooker hood.

2. Tilt the filter upwards.

3. Release the filter access hatch. The notches at the back of the filter will extend outwards and slot into the specially designed openings of the cooker hood.

   The filter is now in position again.

4. Press the glass plate firmly in the seal again (you will hear a click).

The regenerable active carbon filter must be washed by hand with neutral cleaning products, or in the dishwasher at a maximum temperature of 65 °C (the washing should be done without any plates, dishes, cups, etc. in the machine). Do not use washing detergent.

Remove the excess water without damaging the filter, remove the holder and let the filter dry in the oven for at least 40 minutes at a maximum temperature of 70 °C.

To keep the regenerable carbon filter efficient, this action should be repeated every 2 months or when indicated by the filter indicator. The filter must be replaced after no more than 3 years, or if it has been damaged.

To replace the carbon filter, consult the manual for the recirculation kit.

The filters should be replaced or cleaned when the filter indicator is lit. See ‘Maintenance’ chapter.

The filter indicator will light up after 30 operating hours.

• The grease filters should then be cleaned.

• Reset the memory by pressing and holding the filter reset button until the filter indicator goes off.

The filter indicator will flash after 120 operating hours.

• The carbon filter should then be cleaned or replaced.

• Reset the memory by pressing and holding the filter reset button until the filter indicator goes off.

Safety regulations

• Always follow the installation instructions in the installation manual provided.

• Check the appliance for transport damage. Do not connect a damaged appliance.

• Faulty parts may only be replaced by original parts. The manufacturer can only guarantee that original parts meet safety requirements.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Always use the original Supply cord to connect the appliance.

• The electrical connection must comply with national and local regulations.

• The wall plug socket and plug should always be accessible.

• If a stationary appliance is not fitted with a supply cord and a plug, or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, the means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. This is also applicable for appliances with a supply cord and plug when the plug is not accessible after installing the appliance. Using an omnipolar switch with a contact separation of at least 3 mm fitted in the fixed wiring will fulfil this requirement.

• The appliance should not be connected to the mains via a multi-plug adapter or extension cable, as the safe use of the equipment cannot be guaranteed.

• Extraction hoods and other appliances that extract cooking vapours can affect the safe operation of appliances that burn gas or other fuel (including those in other rooms) by backflowing combustion gases. These gases can potentially lead to carbon monoxide poisoning. After installing an extraction hood or other vapour extractor, the operation of appliances with flue gas extraction must be tested by a competent person to ensure that the combustion gases do not flow back.

• Disconnect the appliance from the mains supply before starting any repair work.

• We advise you to wear protective gloves when assembling the cooker hood because of the possible sharp edges.

• The distance between the lowest point of the cooker hood and the supporting surface for the cooking vessels gas hob should be at least 65 cm.

• If the instructions of the gas hob specify a greater distance, this has to be taken into account.

If the safety instructions and warnings are not followed, the manufacturer cannot be held responsible for any resulting damage.

If you decide to discontinue using the appliance because of a fault, we recommend you cut off the cable after removing the plug from the plug socket. Take the appliance to your municipality’s waste disposal site.
